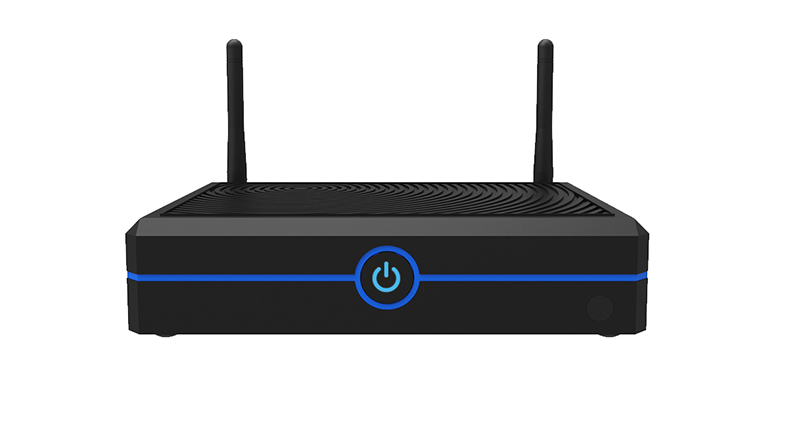

PB01TGL
PRODUCT DESCRIPTION
Our products are subjected to a rigorous testing process to ensure that they meet the highest standards with a defect rate of less than 1%.
Product Specs
|
CPU |
INTEL tiger lake up3；TDP 28W |
|
DDR |
2X SODIMM260 DDR4 support 3200M |
|
M2 M-KEY slot |
NVME SSD 2280,Support 4X PCIE4.0 |
|
M2 B-KEY slot |
SATA SSD 2242 or 4G module（SIERRA EM7411 U3） |
|
HDMI2.0 |
X3；max 4k@60 |
|
Ethernet |
USB4.0（max 20Gbps），DP1.4（7680×4320@60 max32.4Gbps）， TBT4（max 40Gbps） |
|
USBC |
x2, max 10Gbps |
|
USB3.2 |
x2, max 480Mbps |
|
USB2.0 |
x1, 1Gbps，I219（Intel）,Support WOL,PXE |
|

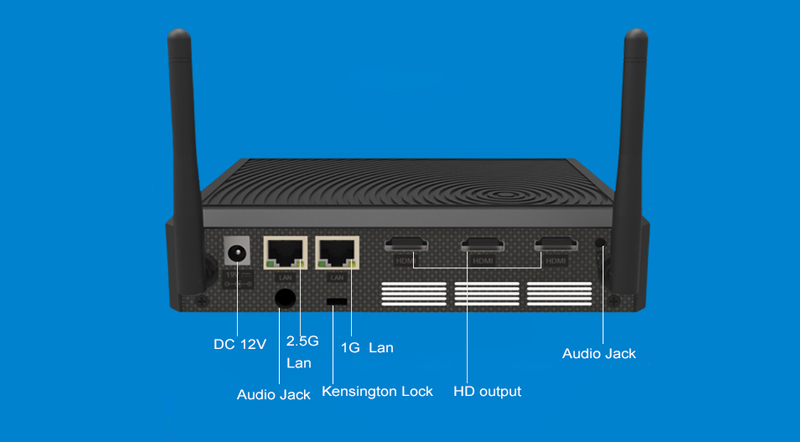

LAN |
x1, 2.5Gbps, I215 (Intel),Support WOL,PXE |
| LAN |
x1 |
|
earphone |
x1 |
|
TF |
AC9560 802.11ac 2×2;1.73Gbps,BT5.1 |
|
WIFI & BT module |
AX201 802.11AX, 2X2 ,2.4Gbps, BT5.1 |
|
VESA |
support,75×100 |
| Remote control | support;Infrared |
| HDMI CEC | TBD |
| UART | TBD |
| HDD | 2.5’SATA HDD |
| Status indication | Dual color led；shutdown:red light,sleep:blue blind;On:Blue light |
| FAN | 4PX1.25MM;5V;PWM Speed adjustment |
|
Mainboard Dimensions |
148x105x1.2mm |
